luukbox® fits on Mercedes ML-Class W166
luukbox1
luukbox2
luukbox3
luukbox4
luukbox5
luukbox6
Mobile Preview: luukbox1
Mobile Preview: luukbox2
Mobile Preview: luukbox3
Mobile Preview: luukbox4
Mobile Preview: luukbox5
Mobile Preview: luukbox6

luukbox® fits on Mercedes ML-Class W166

Product No.:
LB041661X
429,00 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

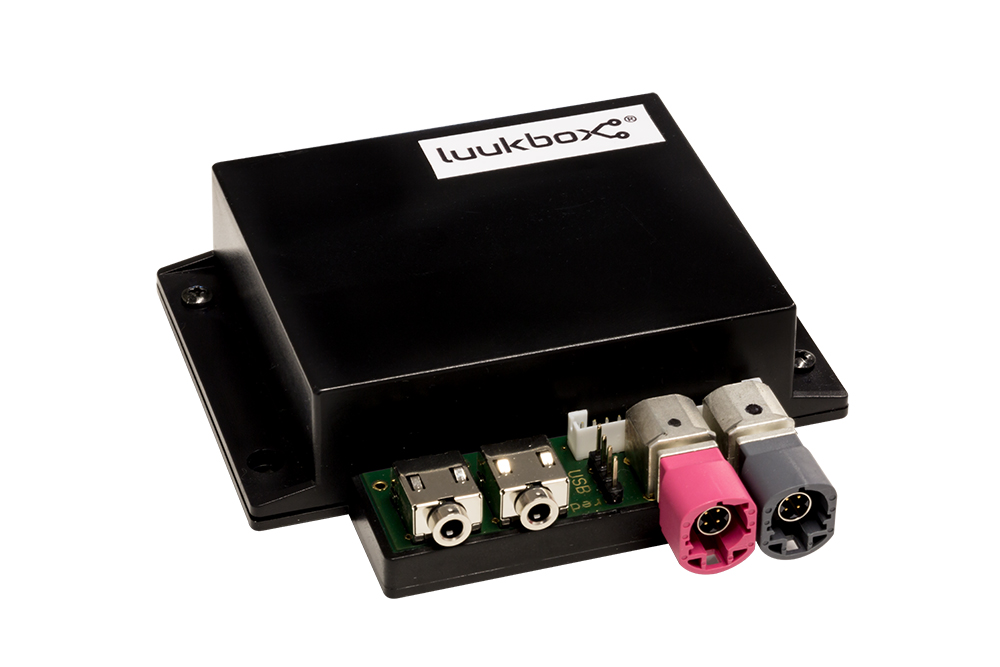

luukbox® fits on Mercedes-Benz ML-Class W166


The luukbox® is a comprehensive multimedia solution which is integrated completely in your car. For this will be used a plug & play harness.

The contents are displayed at the vehicles display. The luukbox® is controlled by the original controller at the center console. Additional controllers have not to be installed. The luukbox® offers the operating comfort you already know from your vehicle.

The luukbox® allows the connection of various audio and video sources to the Audio 20 CD NTG 4.5 System. This can be done by the integrated USB port, as well as the two integrated analogue audio / video inputs.

With the mediacenter which is integrated into the luukbox® music, pictures and videos can be played in high quality from a connected USB-Stick. By playing music title information will be showen at the cars display. Playing videos is possible up to a user-specific speed-limit*.

In addition, up to two analogue audio / video sources can be connected. DVD-Player, DVB-T Tuner, as well as game consols are possible.

It is also possible to connect a rearview camera. The camera picture will be displayed when the reverse gear is engaged, automatically.

Furthermore the luukbox® offers a wide range of configuration options. For example display and sound configuration, country settings

Due to the possibility of free firmware updates you always remain up-to-date and profit from future extensions.

At the following video you will see the luukbox® in use:



Technical Data:


Operatin Voltage: 7 – 15V

Current Consuption: <200mA im Use, <1mA im Standby

AV-Input: 2 x AV in (PAL or NTSC) 16:9, 4:3, 16:9 anamorph

Media interface: USB

Supported media formats:

Medien-Container:
AVI, MPEG, WMV, ASF, FLV, Matroska, QuickTime, MP4, M4A, AAC, NUT, Ogg, OGM, RealMedia RAM/RM/RV/RA/RMVB, 3gp, VIVO, PVA, NUV, NSV, NSA, FLI, FLC, and DVR-MS

Video formats:
MPEG-1, MPEG-2, H.263, MPEG-4 SP and ASP, MPEG-4 AVC (H.264), MPEG-H HEVC (H.265), HuffYUV, Indeo, MJPEG, RealVideo, RMVB, Sorenson, WMV, Cinepak

Audio formats:
MIDI, AIFF, WAV/WAVE, MP2, MP3, AAC, AACplus, AC3, DTS, ALAC, AMR, FLAC, Monkey's Audio (APE), RealAudio, SHN, WavPack, MPC/Musepack/Mpeg+, Speex, Vorbis und WMA.

Digitalpicture formats:
RAW-Formate, BMP, JPEG, GIF, PNG, TIFF, MNG, ICO, PCX and Targa/TGA

Subtitle formats:
AQTitle, ASS/SSA, CC, JACOsub, MicroDVD, MPsub, OGM, PJS, RT, SMI, SRT, SUB, VobSub, VPlayer

Meta data:
APEv1, APEv2, ID3 (ID3v1 and ID3v2), ID666, Exif und IPTC (mit GeoTagging) for picture formats

Audio output:
up to 384kHz, 32Bit PCM

Dimensions:
103mm x 100mm x 24mm (L x B x H)

Weight(without harness):
ca. 105g



Delivery:

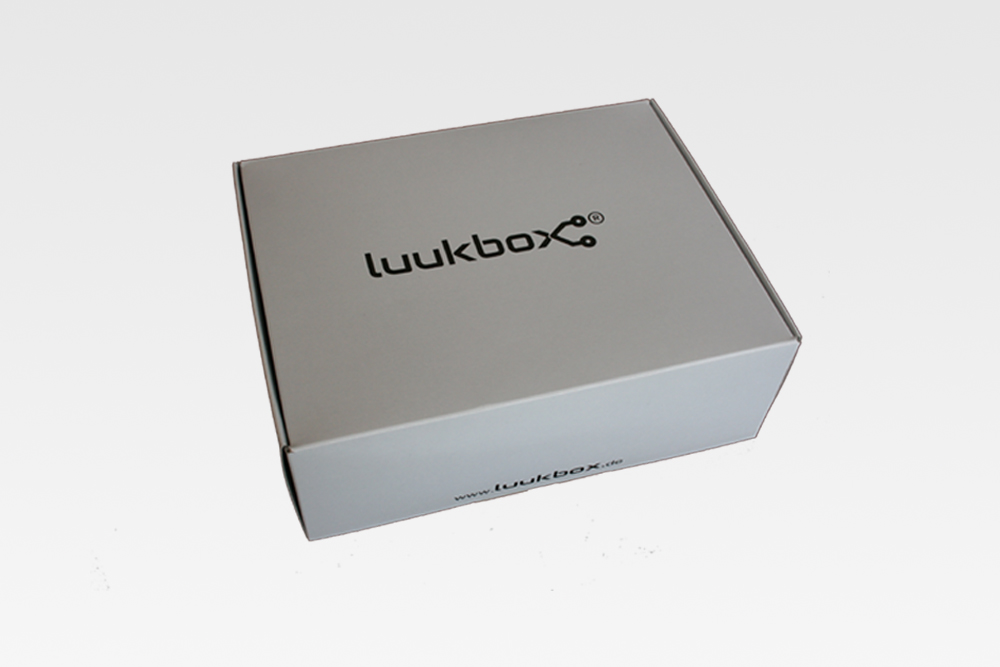

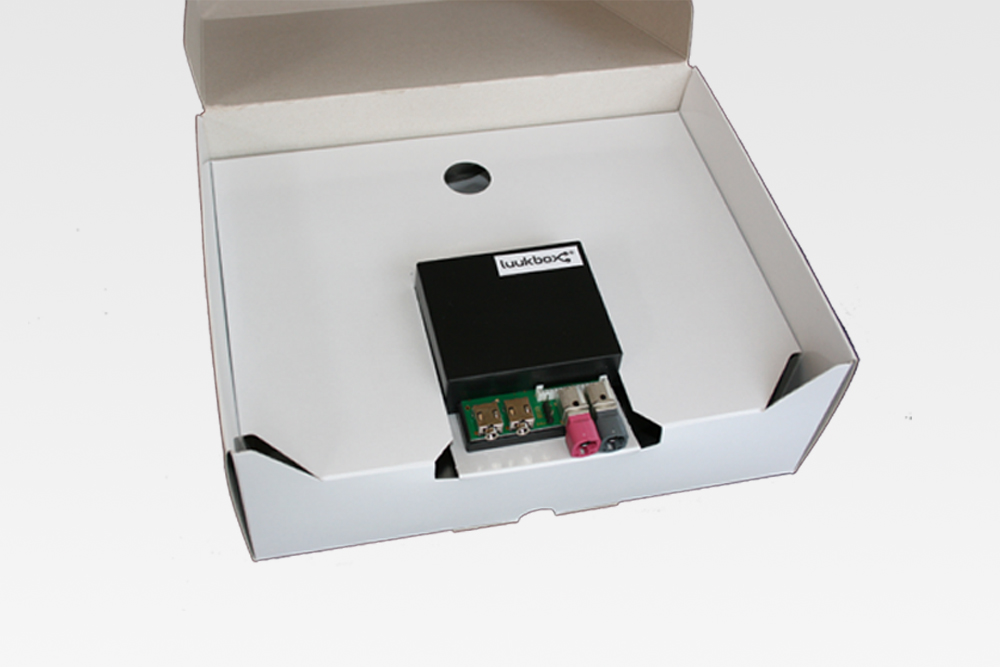

  • luukbox®

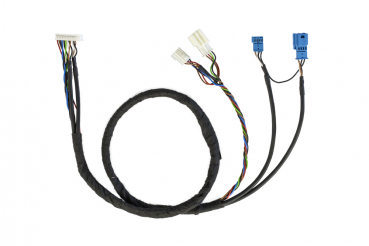

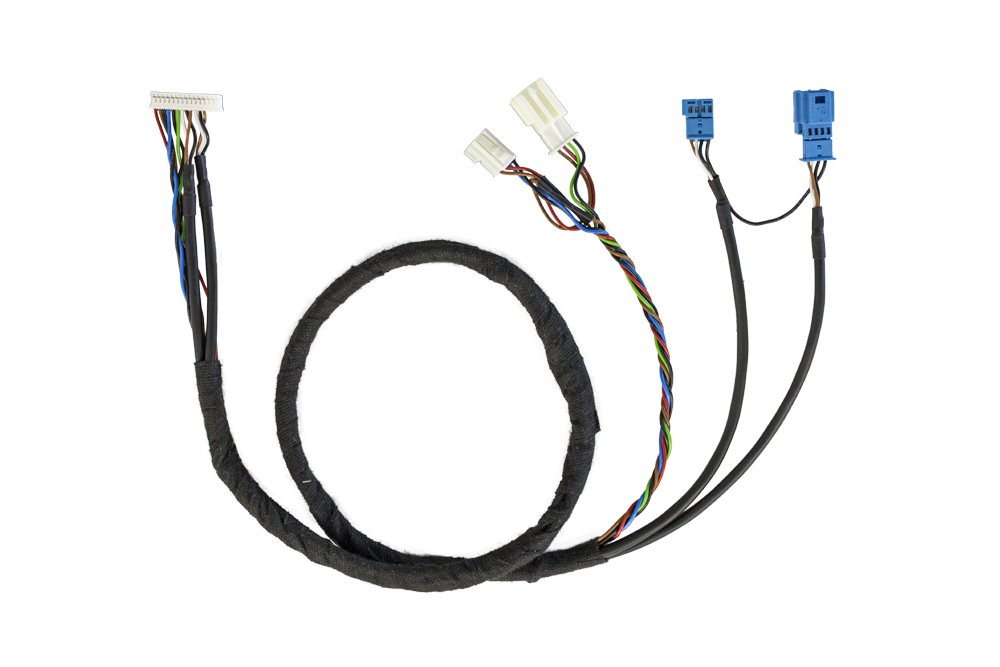

  • Connection Harness*
  • mounting material
  • vehicle-specific installation manual
  • Operation manual

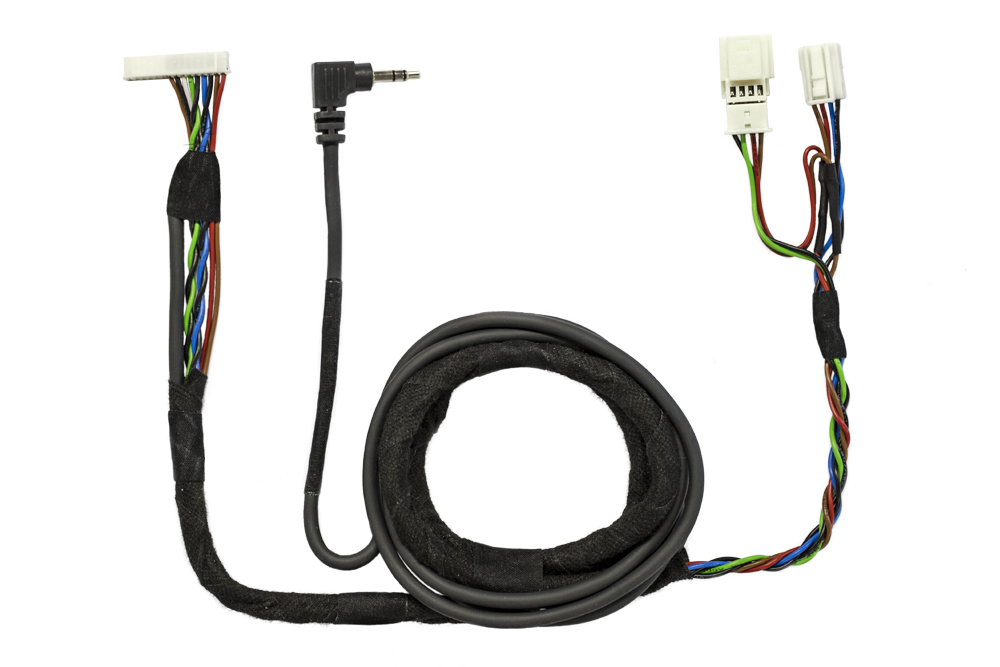

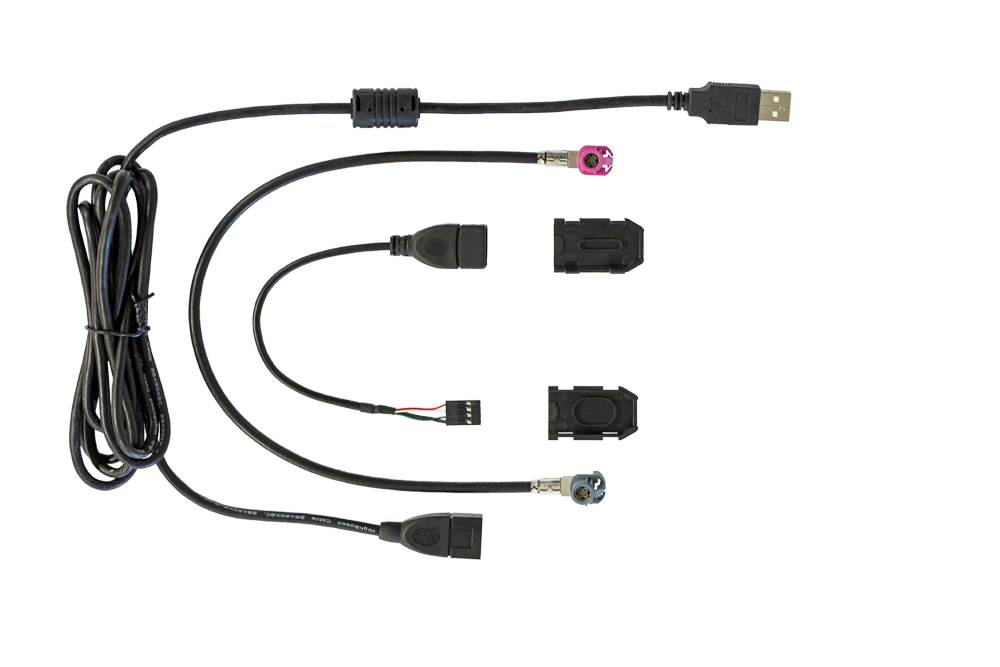

* please note that you need an extra connection wire for connecting an external audio / video sources to the Cinch-Input. You can find such a wire at our shop.
