AIO-Module (top comfort module) for Mercedes SL R230, > 2001 (also for facelift cars)
The integrated helpLED helps you by the installationship. It showes if the power supply and the data connect are made well and if the modules is connected right to your car.
This modules combins the following features
One Touch
Top remote by original key remote
SpeedX
Mainswitch
One Touch: You don't need to hold the top switch anymore until the top moving has ended. Just "push" on the switch and the top will open / close automatically.
Top remote by original key remote: Open / close the top by using the original key remote. Push three times on the key remote and the top will open / close automatically.
While the top is moving you can start the engine and drive slowly.
SpeedX: With this feature you can open / close the top while driving up to a speed of 50 km/h. With the "end phonecall" button at the steering wheel you can set any speed for this feature until 50 km/h.
Mainswitch: It is possible to deactivate the module completely.
The top module does not influence any functions of the car.
The top modules of XCar-Style are made of a high quality standard and are Made in Germany.
Note:
For the installation you do not need any special tool.
Installation:
The installation can be done by yourself. A detailed, illustrated manual shows the installation step by step.

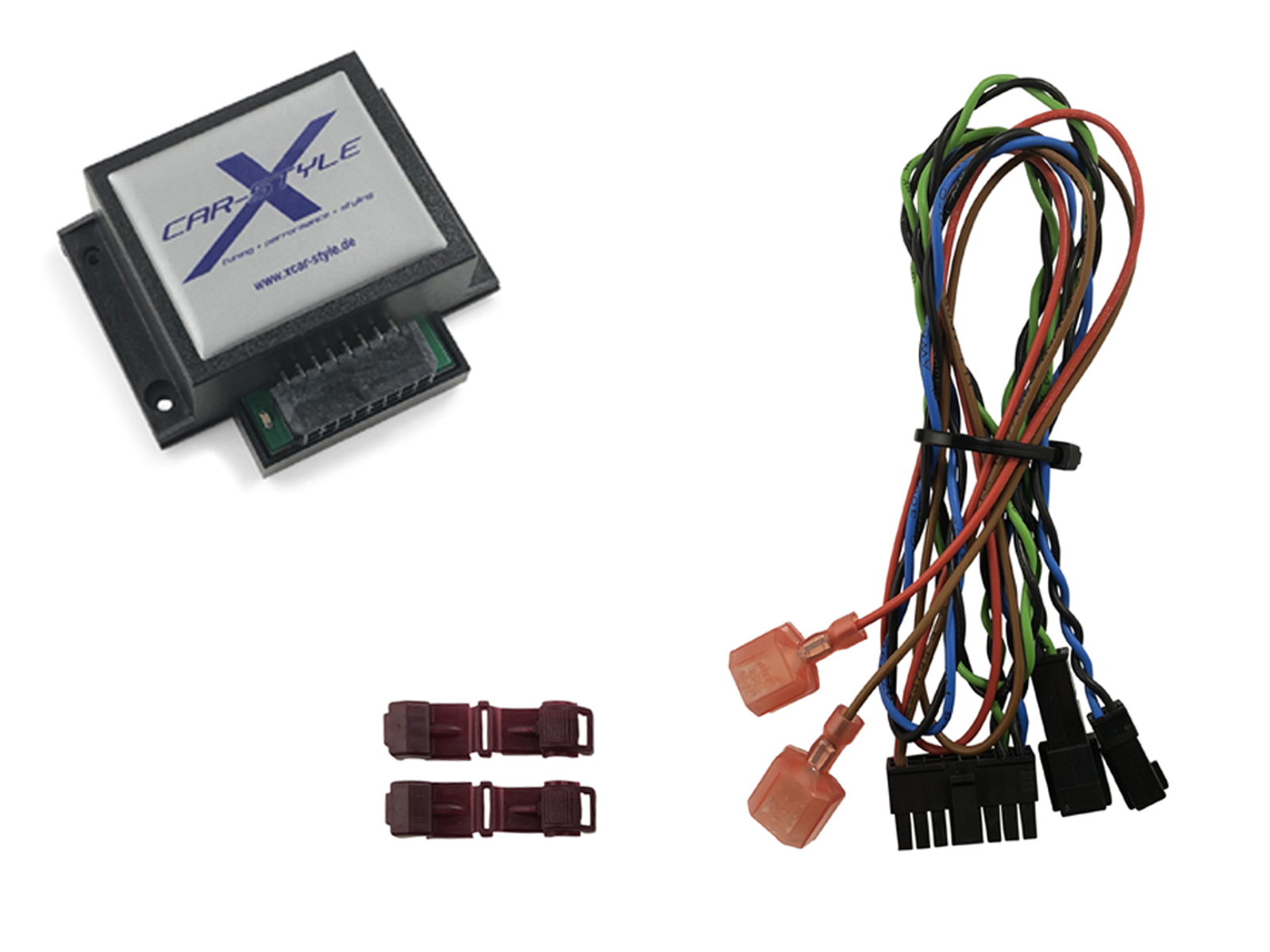

Delivery:
Top comfort module Mercedes SL R230 AIO-Modul
Connection material
Detailed, illustrated manual.
Technical data:
Voltage: 8-18V DC
Power consumption: <1mA Standby / max. 70 mA Use
Temperature: -40 °C bis +85 °C
Dimensions (B x T x H): 68 x 58 x 24 mm
