AIO-Module (top comfort module) for Mercedes E-class convertible A207, for all model years.
This module is equipped with an an integrated full text setup menu which is showen on the speedometer. With this you can set all features as you want. Is is also possible to deactivate features you do not like.
The setup menu is available in German, Englisch, Italienisch and Spanish.
This modules combins the following features:
OneTouch
Top remote by original key remote
Window remote by original key remote
WindowAutomatic
SpeedX
SpeedX-Signal
Hazzard Signal
Mainswitch
One Touch: You don't need to hold the top switch anymore until the top moving has ended. Just "push" on the switch and the top will open / close automatically.
Top remote by original key remote: Open / close the top by using the original key remote. Push three times on the key remote and the top will open / close automatically.
If you push four times on the key remote top and windows will open.
While the top is moving you can start the engine and drive slowly.
Window remote by original key remote:: Open / close the windows by using the original key remote. Push two times on the key remote and the windows will open / close automatically.
WindowAutomatic: Just make a short pull at the window button at the center consol and all windows will close automatically. You do not need to hold it anymore until the windows has been closed.
SpeedX: With this feature you can open / close the top while driving up to a speed of 55 km/h. With the "end phonecall" button at the steering wheel you can set any speed for this feature until 50 km/h.
SpeedX-Signal: If this feature is activated you will hear an accoustic warning signal when you exceed the SpeedX of 55 km/h. This feature is working at a driven speed between 55 and 60 km/h. With this signal you get the information that the top operation will stop if you do not limit the driven speed.
Hazzard Signal: The Hazzard Signal can be activated optionally when you activate the windows / top by remote.
Mainswitch: It is possible to deactivate the module completely.
The top module does not influence any functions of the car.
The top modules of XCar-Style are made of a high quality standard and are Made in Germany.
Note:
For the installation you do not need any special tool.
Installation:
The installation can be done by yourself. A detailed, illustrated manual shows the installation step by step.
Delivery:

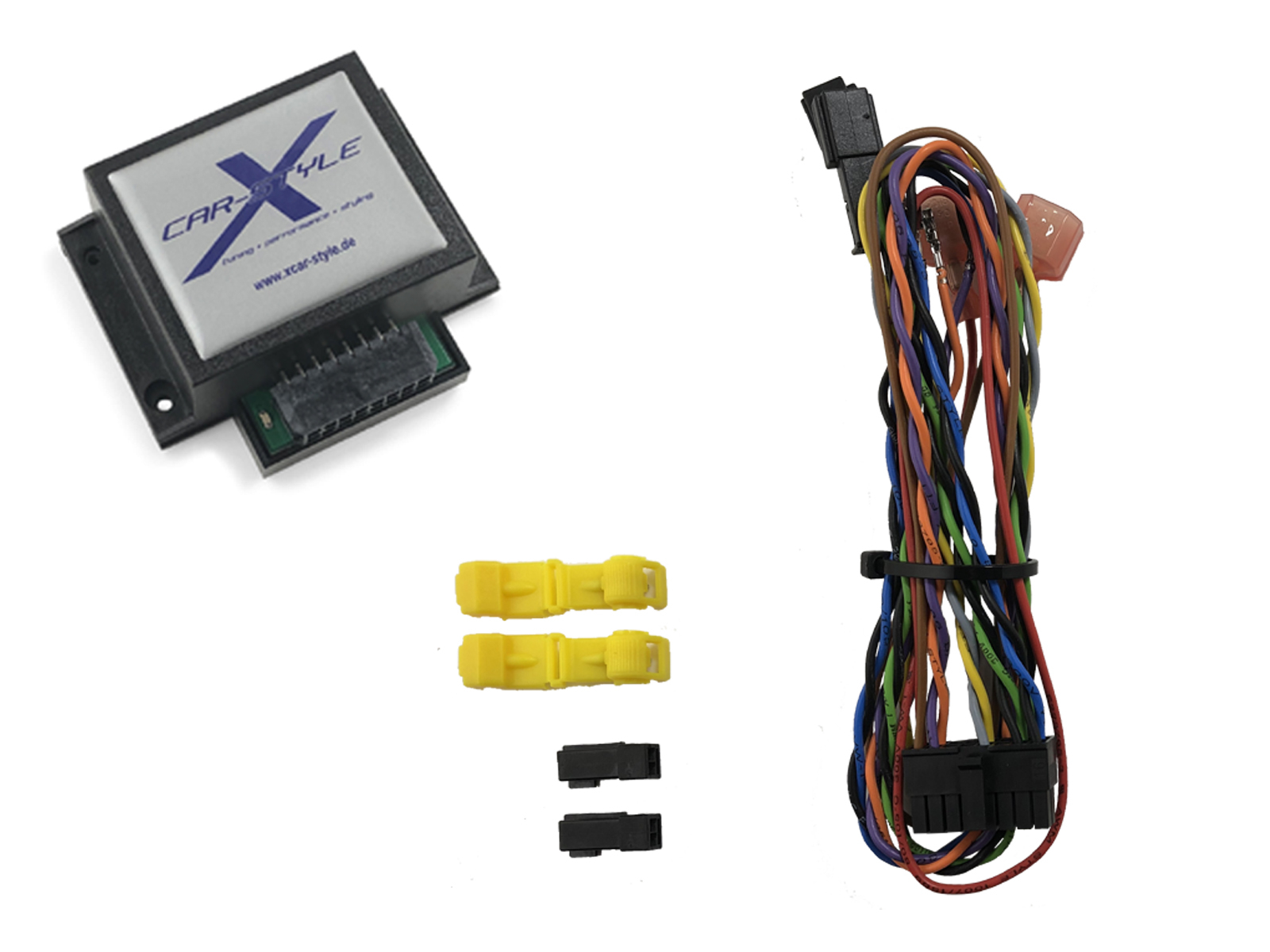

Top comfort module Mercedes E-Class (A207) AIO-Module
Connection material
Detailed, illustrated manual.
Technical data:
Voltage: 8-18V DC
Power consumption: <1mA Standby / max. 70 mA Use
Temperature: -40 °C bis +85 °C
Dimensions (B x T x H): 68 x 58 x 24 mm
