AIO-Module (top comfort module) for Mercedes S-class convertible A217, for all model years. Plug & Play harness.
This module is equipped with a setup menu. With this you can set all features as you want. Is is also possible to deactivate features you do not like.
This modules combins the following features:
OneTouch
Top remote by original key remote
Window remote by original key remote
KeylessRemote
WindowAutomatic
Wipe
SmartWinddeflector
RearWinddeflector
Mainswitch
One Touch: You don't need to hold the top switch anymore until the top moving has ended. Just "push" on the switch and the top will open / close automatically.
Top remote by original key remote: Open / close the top by using the original key remote. Push three times on the key remote and the top will open / close automatically.
If you push four times on the key remote top and windows will open.
While the top is moving you can start the engine and drive slowly.
Window remote by original key remote: Open / close the windows by using the original key remote. Push two times on the key remote and the windows will open / close automatically.
KeylessRemote: Open / close the top by door touch sensor if your car is equiped with keyless go.
WindowAutomatic: Just make a short pull at the window button at the center consol and all windows will close automatically. You do not need to hold it anymore until the windows has been closed.
Wipe: By using the slice splash after eight seconds the wipers will be activated one time. The resulting water at the windshield will be eliminated.
SmartWinddeflector: In case of open top the electrical winddeflector will be closed automatically, if the ignition will be turned on. By turning off the ignition it will be opened.
RearWinddeflector: In case of open top the electrical winddeflector will be opened automatically when the rear gear will be engaged. By doing the rear gear out the winddeflector will be closed automatically.
Mainswitch: It is possible to deactivate the module completely.
The top module does not influence any functions of the car.
The top modules of XCar-Style are made of a high quality standard and are Made in Germany.
Note:
For the installation you do not need any special tool.
Installation:
The installation can be done by yourself. A detailed, illustrated manual shows the installation step by step.
Delivery:

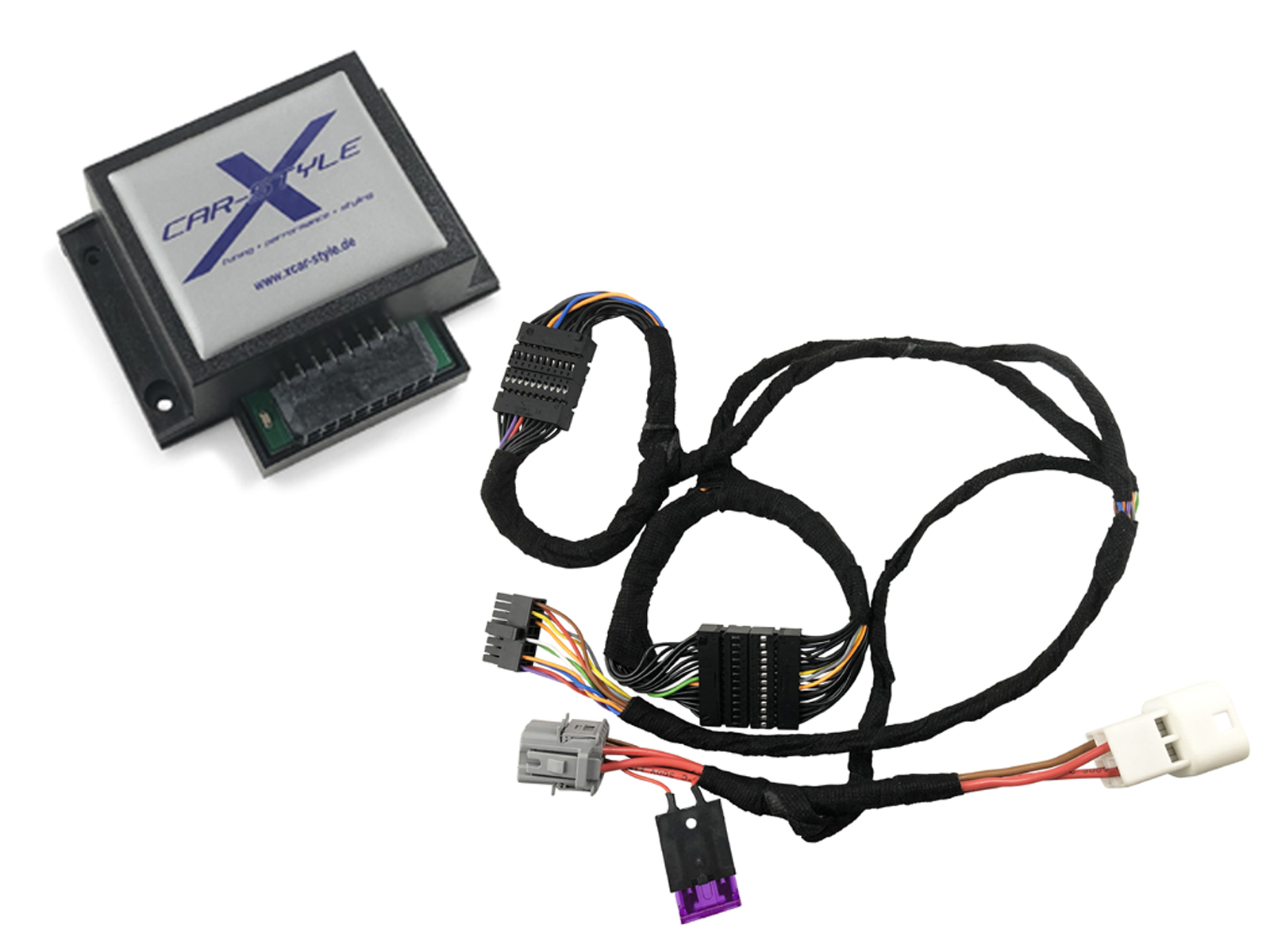

Top comfort module Mercedes S-Class (A217) AIO-Module
Connection material
Detailed, illustrated manual.
Technical data:
Voltage: 8-18V DC
Power consumption: <1mA Standby / max. 70 mA Use
Temperature: -40 °C bis +85 °C
Dimensions (B x T x H): 68 x 58 x 24 mm
