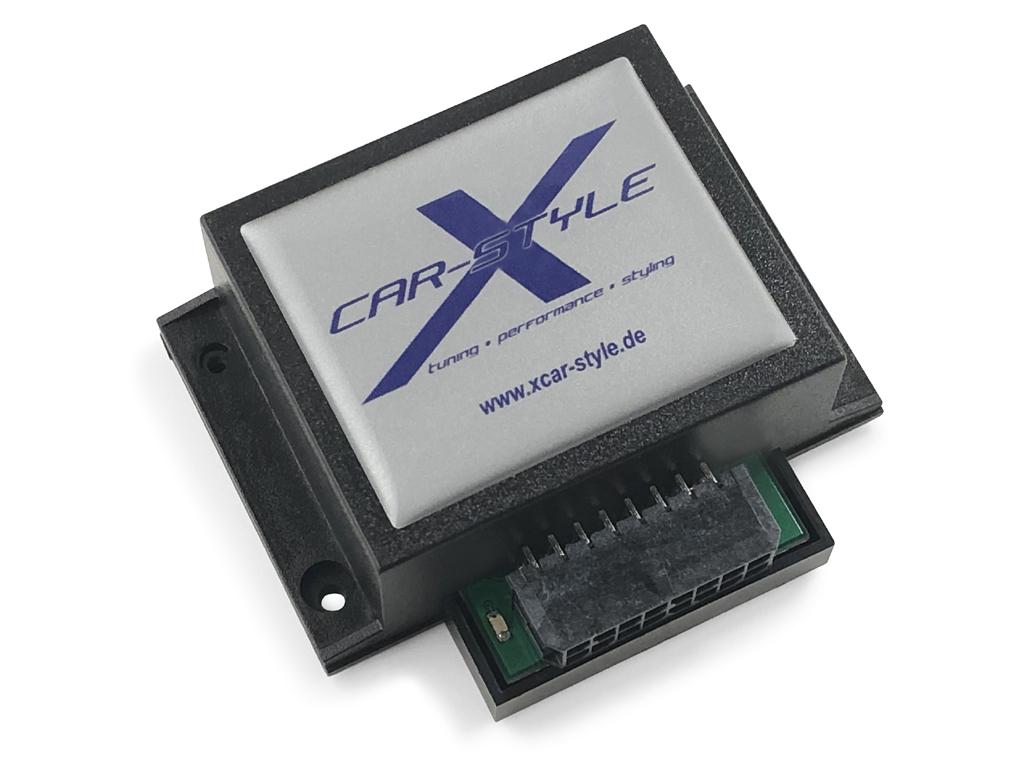

AIO-Module top comfort module / top control unit for MINI convertible F57
This modules combins the following features:
One Touch
Top remote by original key remote
Window remote by original key remote
Sunroof remote by original key remote
SpeedX
WindowComfort
Mainswitch
One Touch: You don't need to hold the top switch anymore until the top moving has ended. Just "push" on the switch and the top will open / close automatically.
Top remote by original key remote: Open / close the top by using the original key remote. Push three times on the key remote and the top will open / close automatically.
If you push four times on the remote the top and the side windwos will be open.
While the top is moving you can start the engine and drive slowly.
Window remote by original key remote: Open / close the windows by using the original key remote. Push two times or hold on the key remote and the windows will open / close automatically. At the setup menu you can choose if you want to push the button two times or hold it for two seconds. Also you can choose there if you want to activate the windows separately or together with the sunroof.
Sunroof remote by original key remote: Open / close the sunroof by using the original key remote. Push two times or hold on the key remote and the sunroof will open / close automatically. At the setup menu you can choose if you want to push the button two times or hold it for two seconds. Also you can choose there if you want to activate the sunroof separately or together with the windows.
SpeedX: With this feature you can open / close the top while driving up to a speed of 60 km/h. Standard of the module is 45 km/h. At the modules installation menu you can choose between two speed settings - 45 and 60 km/h.
WindowComfort: Just make a short pull at the window button at the center consol and all windows will close automatically. You do not need to hold it anymore until the windows has been closed.
Mainswitch: It is possible to deactivate the module completely.
The top module does not influence any functions of the car.
The top modules of XCar-Style are made of a high quality standard and are Made in Germany.
Note:
For the installation you do not need any special tool.
Installation:
The installation can be done by yourself. A detailed, illustrated manual shows the installation step by step.

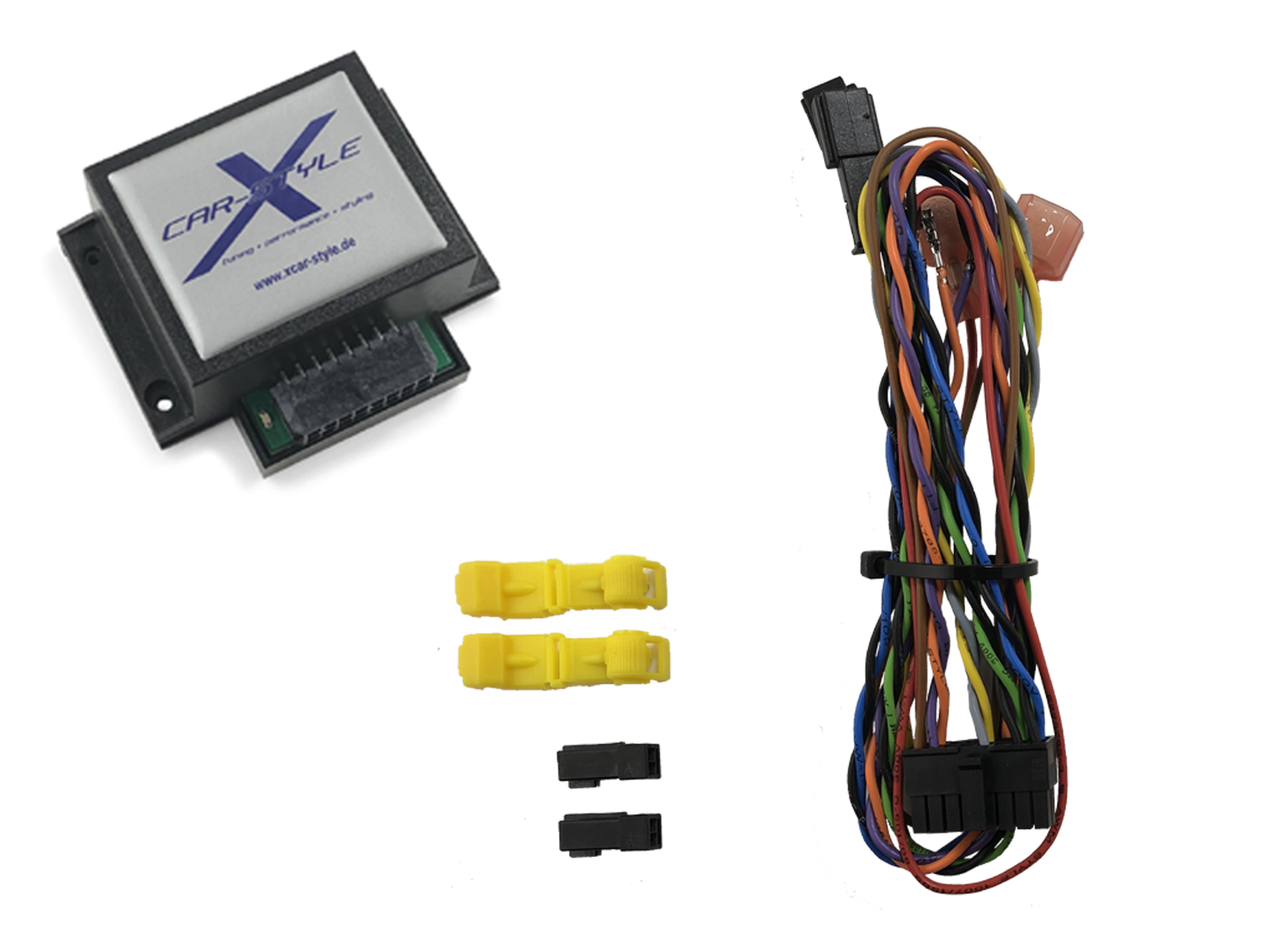

Delivery:
Top comfort module MINI convertible F57 AIO-Module
Connection material
Detailed, illustrated manual.
Technical data:
Voltage: 8-18V DC
Power consumption: <1mA Standby / max. 70 mA Use
Temperature: -40 °C bis +85 °C
Dimensions (B x T x H): 68 x 58 x 24 mm
